Data Governance is often on top of the Chief Data Officer’s agenda.
With the advent of the General Data Protection Regulation (GDPR) in Europe, the California Consumer Privacy Act (CCPA), the China Personal Information Protection Law (CPIPL) and others, companies are taking a closer look at their data practices.
Beyond the need for regulatory compliance, our clients are voicing others concerns, such as:
“Data governance is important; We need to make sure our data access and data manipulation is transparent on-premises and in the cloud.”
“We have challenges with our business intelligence capabilities: our consumers question the data they see. We need to trace back the data source and the steps the information went through (data lineage).”
“We don’t know how to prove the regulator that our threat model is sufficient to protect the services running on the cloud, which access to our data”.
Can we have a pragmatic approach to this vast subject when it has so many different meanings to people? Are we talking about data security, data ownership, data life cycle management, transparency and control, or just all of the above?
How do we address data governance in highly regulated industries such as financial services, translating the regulations into the public cloud realm?
Do you have similar concerns? If these questions resonate with you, do read on.
Cloud Challenges and Opportunities
When moving data to the cloud, many of the on-premises data requirements remain, such as:
Secure data access,
Authorization / entitlement enforcement.
As our clients are moving their centralized data platform to the cloud, they face new challenges :
How to implement complex cross borders compliance requirements across each cloud geography defined by the Cloud Services Providers
How to address data sovereignty, which might prevent the use of a global data platform across geographies, since data movements are restricted by the countries’ regulators
How to implement data lineage across multiple data platforms if it’s not possible to have one global data platform
How to address data observability across regions to provide visibility of all operations performed on data
At the same time, by adopting cloud technologies, users get the benefit of maximizing business insights, thanks to:
Ease of data acquisition There is a plethora of tools from the Cloud Services Providers that help clients collecting data from on-premises and store it into an optimized format (e.g. columnar format such as Parquet or other) on the cloud.
Discovery capabilities to experiment more often Data catalogues’ functionalities are built-in and provide an instant view of the latest data that has been brought into the cloud storage.
Faster access to data With security controls built into the cloud services (there is no additional layer to be built to protect data access on top of each data pipeline for example), providing data access through one of the data services can be faster than accessing on-premises data.
Flexibility in manipulating the data Interactive query tools don’t require any software installation or complex configuration. They are ready to be used.
Seamless and flexible access to the tooling Data engineering & data science workbenches have native access to data and can be instantiated in a few clicks.
Can we adapt the existing data processes that have been designed for on-premises environment, in order to address these new challenges while taking advantage of these benefits?
To do so, while simplifying the data journey of our clients, from on-premises to the cloud, we suggest the four-steps approach, which we commonly use:
Design a Data Security & Control Framework
Standardize Data Pipelines with three stages of data transformation
Design Data Sovereignty & Compliance in all data movement
Define the Data Migration Blueprint
This approach helps our clients addressing their new compliance requirements and meeting their users’ expectations. The four steps are detailed hereafter.
Design a Data Security and Control Framework
To address data protection, secure data access, and authorization / entitlement requirements, we recommend a holistic approach that takes into account the three data classifications:
1) Confidentiality, 2) Availability and 3) Integrity, named sometimes as “Business Impact Analysis” (BIA)

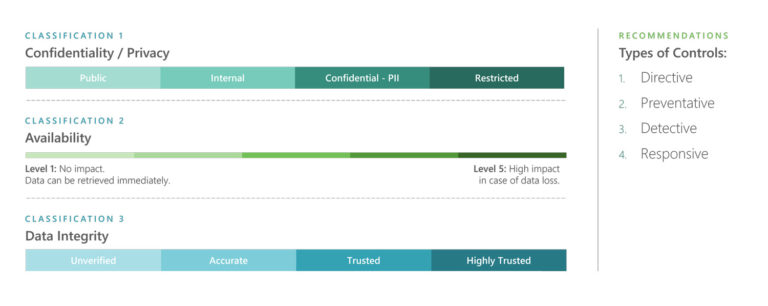

Figure 1 – Applying the data protection and controls based on the combination of the three classifications
The Business Impact Analysis (BIA) rating drives:
The data protection pattern:
This includes encryption, and a combination of masking & tokenization.
The number of service controls associated across four categories of controls:
This approach guarantees the data security with the right level of protection & control based on its classification, by design. To dive deeper on data protection, read the blog posts below:”:
The data and control frameworks are built into the Automated Data Platform Infrastructure and integrated in the Data On-boarding Engine (see last section – ‘Resulting Data Platform’).
Standardize Data Pipelines
In a typical Data Analytics Platform, we recommend to define three stages of data:
Raw Data: data is captured from the source systems (transaction applications) and protected according to the Business Impact Analysis rating of, either each dataset, or each data field within the dataset. Then, data is made available on the Data Analytics Platform on the public cloud. This raw data is the golden source for the running Data Pipelines on the Data Analytics Platform and is ringfenced to prevent any alteration. The original copy is kept on the Data Analytics Platform and a copy is archived using the cloud service provider lifecycle policies.
Transformed Data: raw data that has been standardized, cleaned and recorded in a Unified Metadata Store / Data Catalogue with its specific domain and sub-domain. This data can be further aggregated within its transformed stage.
Consumable Data: this end state of the data is consumable by a data warehouse, an application using an API, or a Machine Learning pipeline to train a machine learning model.
The diagram below depicts the three stages of the data, before they can be consumed. The definition of the three data stages enables exploratory analysis on transformed and consumable data using cloud native and serverless technologies.

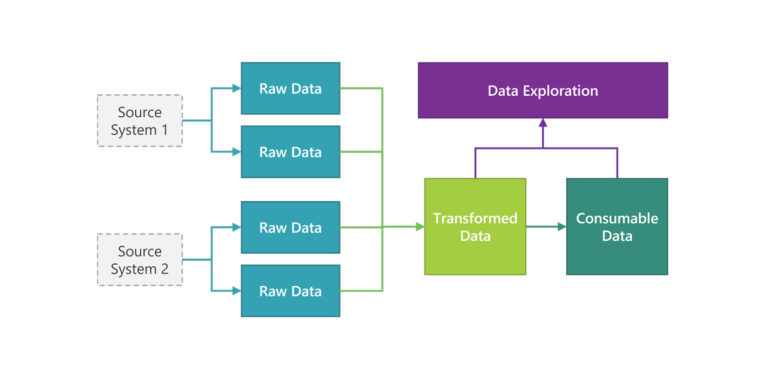

Figure 2 – The three data stages envisioned in the data platform
Each dataset has an associated BIA rating that is carried within a data contract. This data contract is a policy document that follows each dataset through its transformation journey: from Raw Data, to Transformed Data and then Consumable Data.
For example in figure 3 below, the consumable data 126.96.36.199 is formed by combining raw data 1.1 and transformed data 2.1.1. The final consumable data also inherits the highest security classification of its constituent datasets:

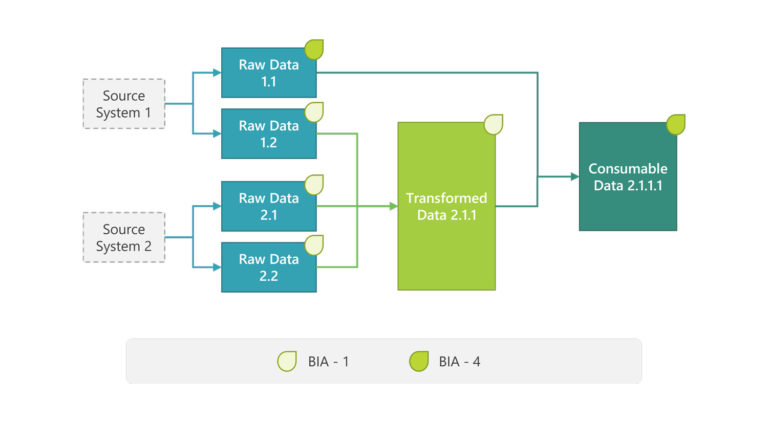

Figure 3 – Propagation of the confidentiality level across combined datasets
With the definition of standardized data pipeline and the associated data protection accomplished, we can now add the data sovereignty and compliance into the picture, with a simple mapping to the three stages of data transformation.
Design Data Sovereignty & Compliance In All Data Movements
To address complex cross borders compliance requirements across geographies, we integrate data sovereignty requirements in all data movements in the public cloud.
An application hosted on-premises might serve multiple geographies such as China, Hong Kong, Australia, Singapore, etc…, But moving the application and/or the underlying data to the cloud requires to comply with more recent data sovereignty rules, which differ from country to country.
Our clients often use the concept of market instead of country. A market corresponds to a specific geography (country) or a set of countries (example: Central Europe) where rules from a single regulator apply. At Amdocs, we have taken this market approach to the cloud and defined the Cloud Market Access Layers.
The Cloud Market Access Layers is a conceptual cloud regulation model that we introduce to assess cloud regulations across 3 layers: data persistence, data processing, and data consumption. It serves as a framework to determine cloud resources deployment patterns on different regulation scenarios. The concept is best illustrated with the following diagram:

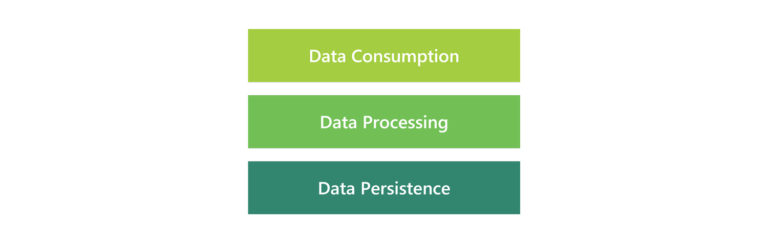

Figure 4 – Three layers of Cloud Market Access Layers
Data Persistence / Sovereignty is the primary layer, where regulations are imposed on data movement to meet the relevant compliance requirements. Some country regulators impose that personalized identified data can’t move out of the country jurisdiction. Data has to persist in the region it was produced.
Data Processing can be allowed by regulators outside the region in which the data persists. This implies that data consumption is also allowed outside the region the data persists. To generalize these subtle differences, we recommend coupling the processing layer to the data persistence layer, thus making data processing happen in the same region where data must persist. In these cases, this translates to Restricted Market, which is described later in this section.
Data Consumption: regulations might dictate where the data should be consumed from. In most cases, local consumption is the default. However, some use cases require the data consumption to be done outside the local region as well.
For example: within a corporate banking business, an enterprise relationship manager sitting in Singapore may want to look at the transactions of all the subsidiaries of his client (a large company) across APAC. This implies that transaction details of the subsidiaries (Indonesia, China, India etc…) will be consumed in Singapore, outside the region where the data is stored in the cloud.
This Cloud Market Access Layers approach drives the architecture design patterns that cater for different regulation scenarios, which leads the concept of “Cloud Market”. We have identified three types of Cloud Markets prevalent for our clients in financial services:
No Cloud Market: itemized clients data are not allowed to move to the cloud
Restricted Cloud Markets: data need to be stored and processed within the country. This can require a specific cloud provider (Ex: Indonesia, China, India)
Global Markets: clients data can be stored and processed on the cloud, in a cloud region outside the country.
The data movement from on-premises to the two cloud market types is illustrated below:

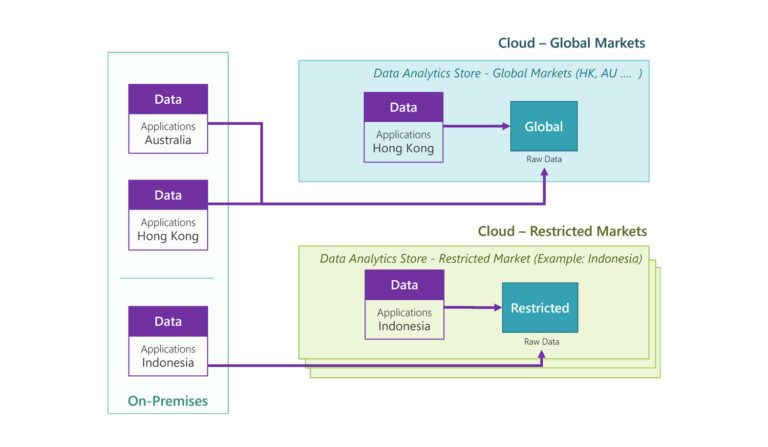

Figure 5 – Concept of Global & Restricted markets
In a given deployment, we expect to have:
One Data Platform to serve a global market
One Data Platform in each restricted market.
Let’s add the standardized data pipeline dimension (three stages of data) to the data sovereignty: together, these dimensions constitute the Data Migration Blueprint described hereafter.
Data Migration Blueprint
The diagram below combines the three stages of the data (Raw, Transformed and Consumable data), with the three layers of data sovereignty. It depicts the data migration path to a set of Restricted Cloud Markets, and to one Global Cloud Market, depending on the public cloud regulations that are countries specific:

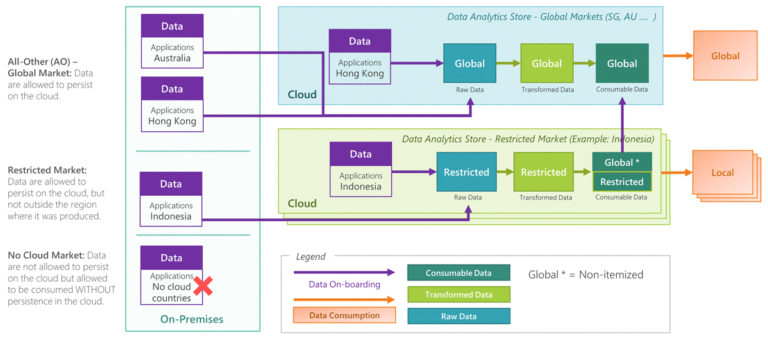

Figure 6 – Applying data sovereignty using restricted cloud markets and one global cloud market
In the data migration path described above, within a restricted market (light green rectangles), we can optionally sub-divide the consumable into two categories: “restricted” consumable data and “global” consumable data (within the dark green rectangle). This “global” consumable data is a subset of the consumable data within a restricted market: It do not contain itemized data and can be moved across regions. This allows global applications to collect (non-itemized) data from the restricted markets and to provide a holistic view, for example, to a bank relationship manager, who oversees the transactions of a corporate client across multiple geographies.
Up to this point, we have defined the data governance of the Data Platform. Let’s now add the functionalities that will support these data governance requirements and put together the resulting Data Platform.
Resulting Data Platform
The resulting Data Platform is a template / blueprint that we replicate across the two cloud market types: one global market and a set of restricted markets.
The data platform blueprint implements the data migration design explained above and is made up of two components: a Platform Automation containing the automated provisioning of analytics infrastructure and the Data Management layer, which contain the data infrastructure applications:
Automated Data Analytics & ML tools provisioning to perform data analysis and data science in a controlled and self-service environment:
Direct data query
ML Ops environment.
Data Management layer
Data On-boarding engine with built-in security & data protection
Data Catalogue to discover what is out there, and what users are entitled to
Flexible entitlement layer with a combination of tags-based access control and role bases access control.
Schema with tags associated to each dataset (Data contracts)
Authorization tags associated to the users: geography etc…
Here is the resulting data platform, which is deployed in the global market:

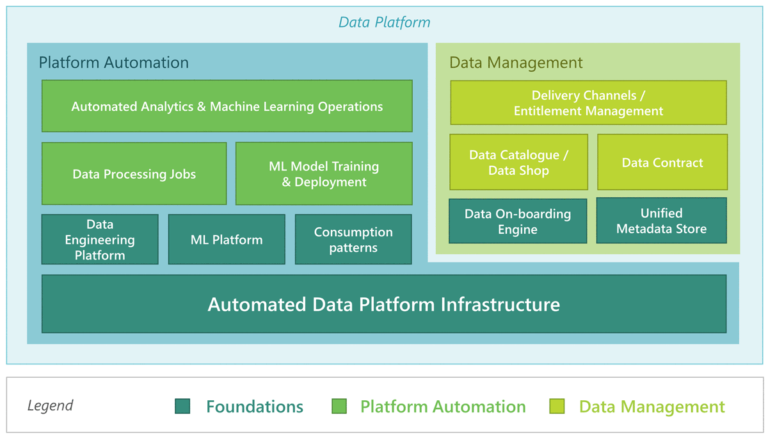

Figure 7 – Resulting Data Platform
In a restricted market, the resulting data platform inherits some of the functionalities from the global market such as Unified Metadata Store and Data Catalogue. Other functionalities like “Delivery Channels / Entitlement Management” will be market independent and run in the global market.
At Amdocs, we simplify the deployment of these two data platform types by having a common analytics infrastructure base (Platform Automation in Figure 7) and a differentiated Data Management layer.
With built-in security, services controls, and a dual market concept, we have a robust pattern to address the data protection & compliance challenges, while delivering on users’ requirements:
